Hunt Announce E_All-Mountain eBike-Specific Wheelset with Phase Engage Hub

hunt e_all-mountain ebike specific alloy wheelset 31mm internal width rim phase engage hubCredit: James Vincent
Support us! Bikerumor may earn a small commission from affiliate links in this article. Learn More

Hunt is introducing its first eMTB-specific wheelset in the form of the Hunt E_All-Mountain, complete with a 31mm internal width aluminum rim laced to Hunt’s own Phase Engage hubset. The rim has been in production for sometime, being the very same 6069-T6 alloy rim in use on the Hunt Enduro Wide V2 wheelset we tested previously.

Hunt has repurposed it here for the rigors of eMTB riding with triple-butted Pillar spokes and Hunt’s eMTB-specific freehub system offering 8 degree engagement. The set is yours for £479 ($649 USD). We have the key details.

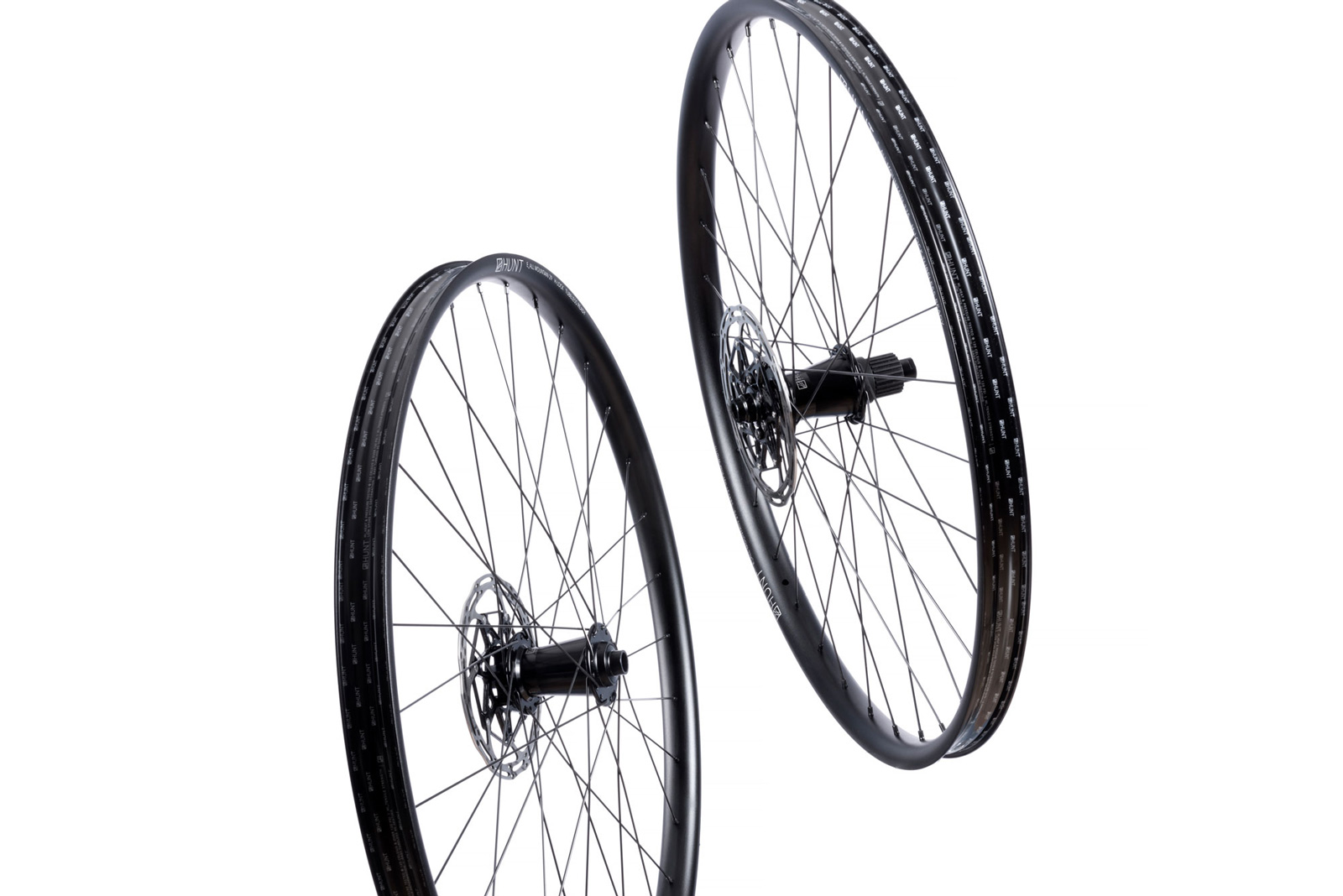

hunt emtb wheelset e_all-mountain alloy extruded rim
The maximum system weight on the new Hunt E_All-Mountain wheelset is 135 kg

Hunt All-Mountain eBike Wheels

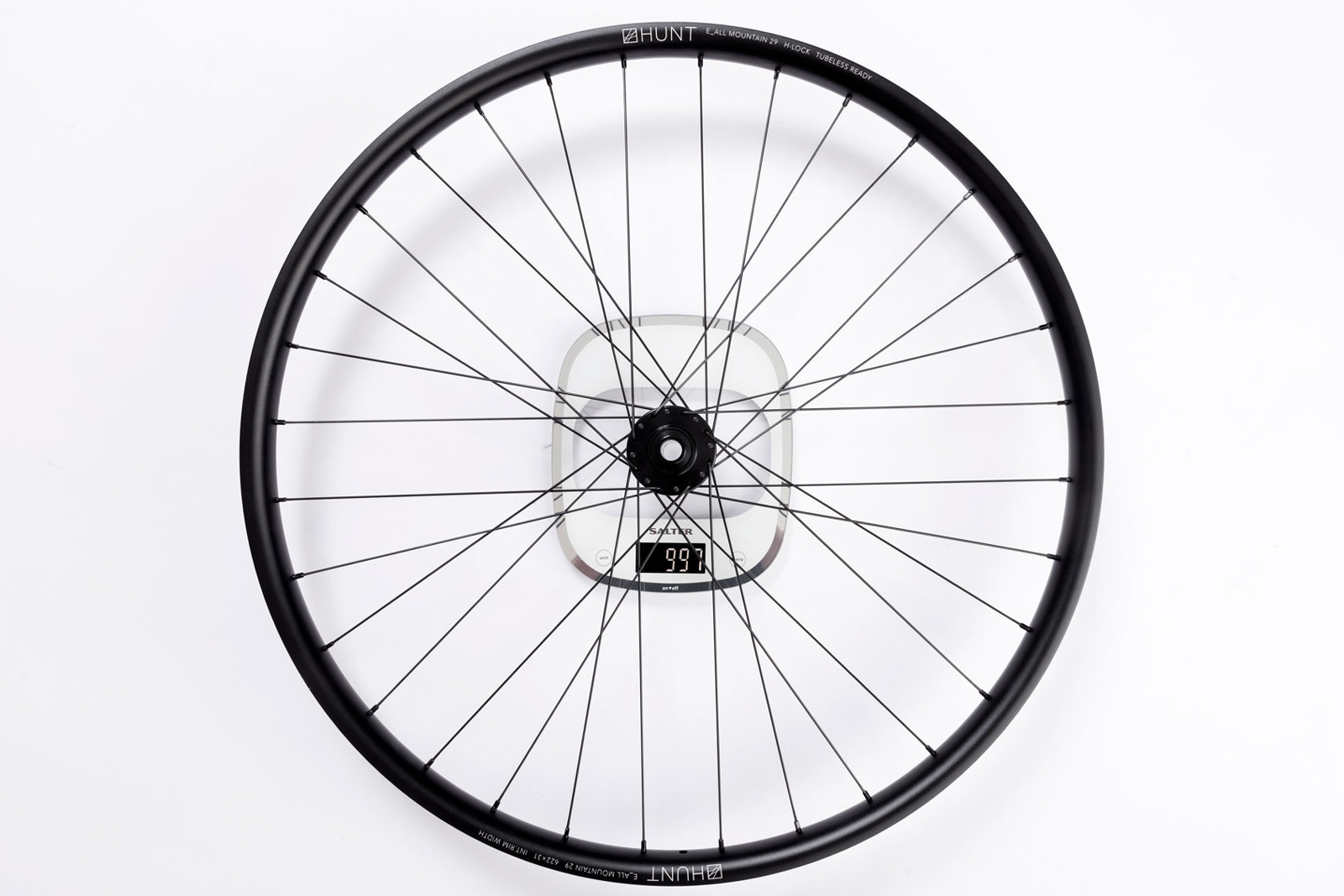

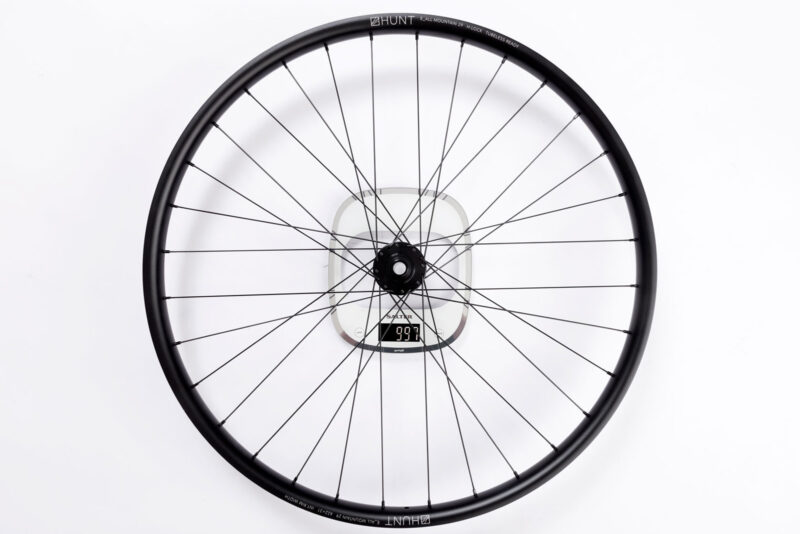

Available in Boost only, the Hunt E_All-Mountain Wheelsets are available in 29″, 27.5″, or MX. The latter set complete with MS freehub body weighs in at 2,217 grams, with the front wheel weighing 997 grams, and the rear weighing 1,220 grams. Claimed weight for the complete 29″ set is 2,193 grams, with the complete 27.5″ set weighing a claimed 2,143 grams (w/o freehub body).

To demonstrate their 31mm alloy rim is suitable for the greater loads associated with eBiking, Hunt generated some impact data. It pertains to a single-wall impact test scenario, said to best replicate impacts on the trail. And, it suggests the Hunt rim is more impact resistant than the rims of the Crankbrothers Synthesis eMTB Alloy wheelset, and the DT Swiss HX 1700 Spline Hybrid wheelset. More force is required to deform or break the rim.

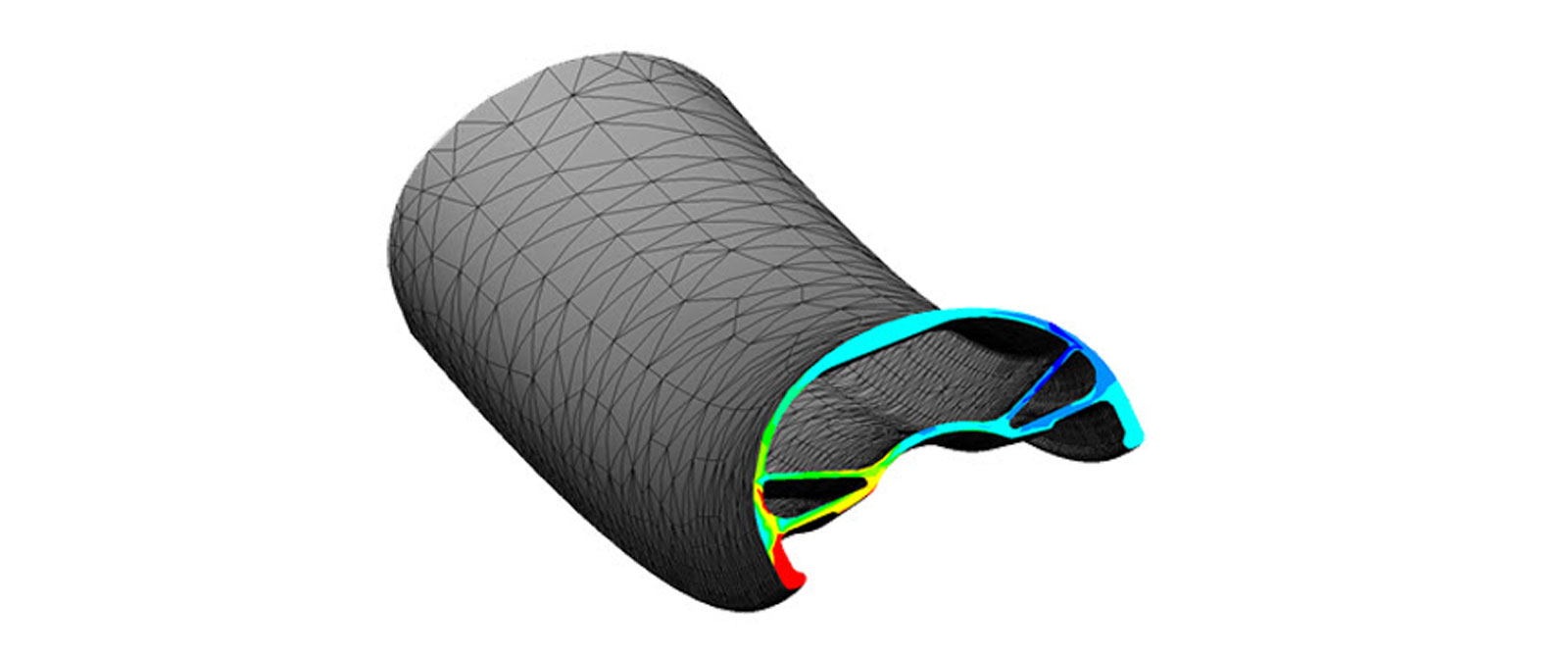

hunt e_all-mtn 6069 t6 alloy rim profile 31mm internal width hooked
The Hunt E_All-Mountain wheelset features an internally reinforced rim for improved impact resistance. The 31mm internal width is intended to seat 2.35″-2.6″ tires.

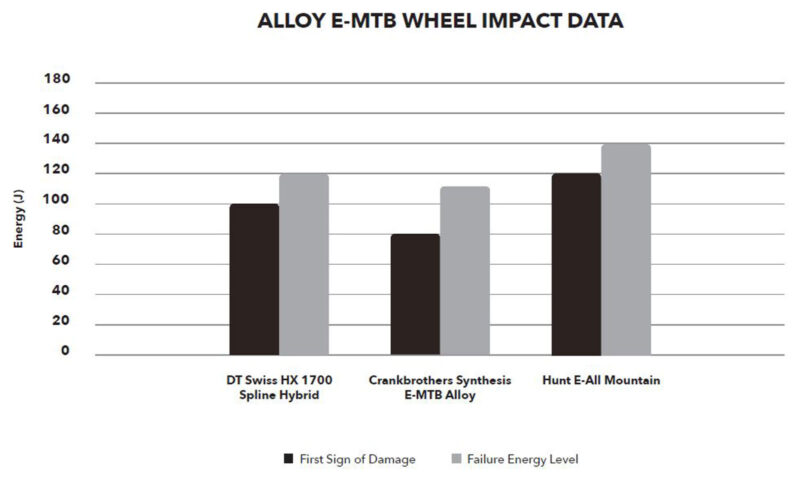

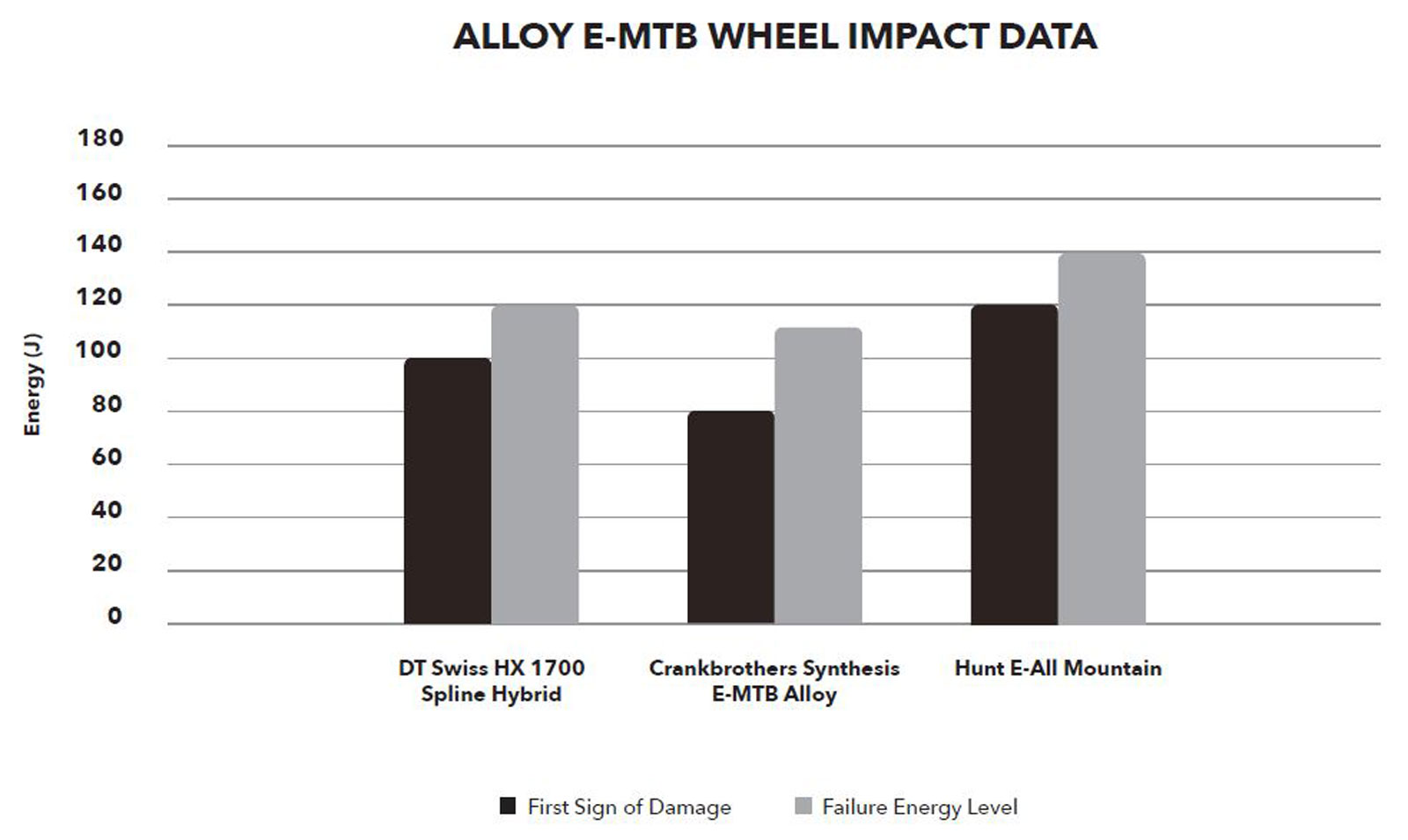

hunt e_all-mtb ebike wheelset single wall impact data test results versus competitors

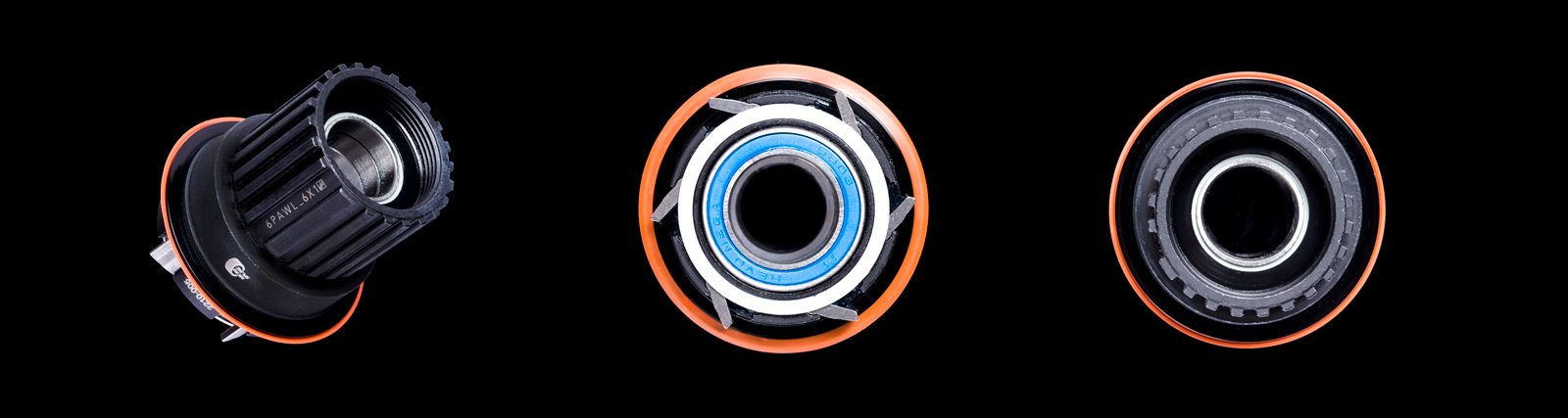

While the Hunt Enduro Wide V2 wheelset runs their Rapid Engage hubset with 5° engagement, this eBike-specific wheelset is home to the new Phase Engage freehub with 8° engagement. Both feature a 17mm 7075-T6 axle said to resist bending, with 6 spring-backed pawls. The major difference is that, on the Rapid Engage hub, only 3 pawls engage at any one time (and more often). Here on the Phase Engage hub, all 6 engage simultaneously for improved torque transfer and increased durability.

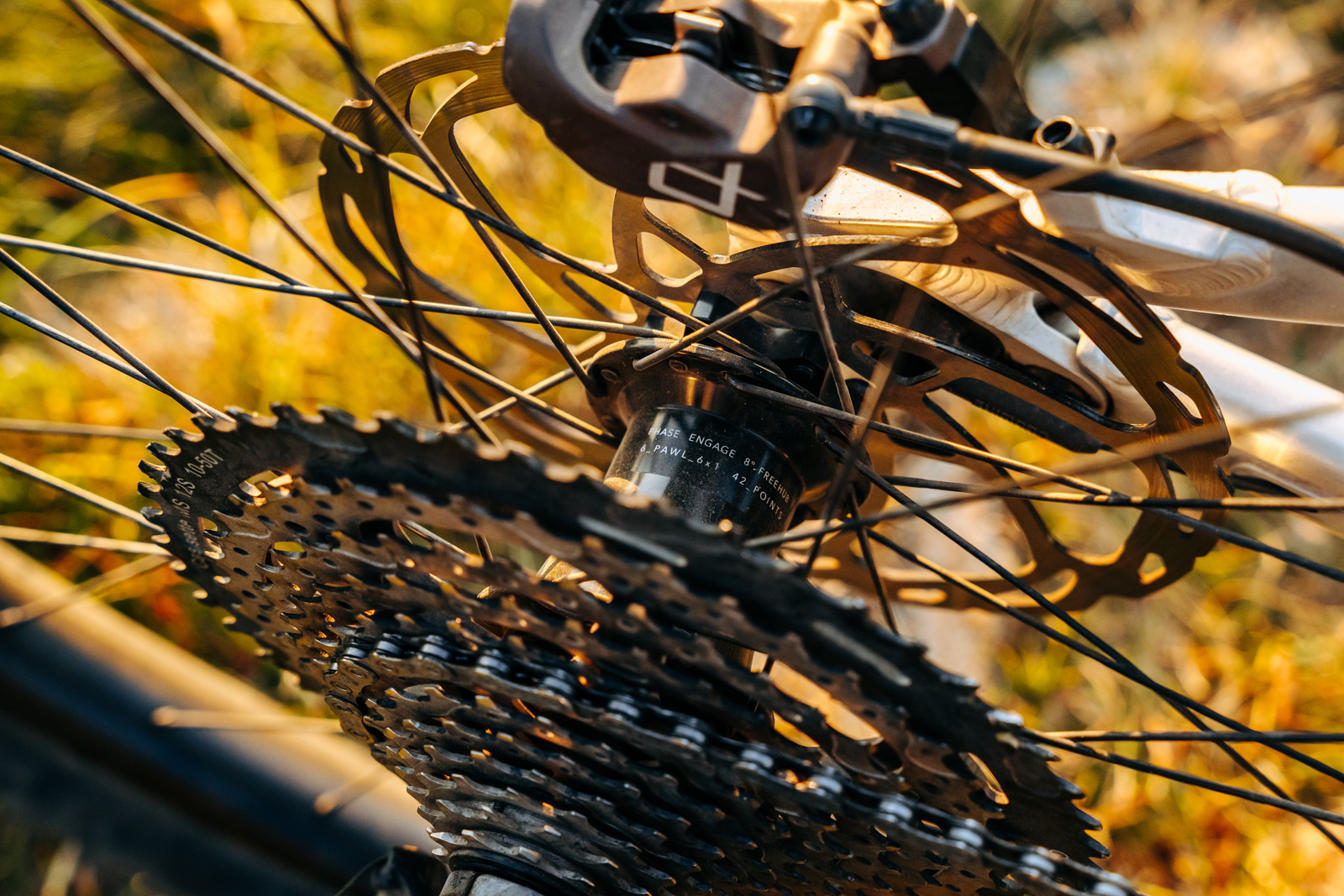

hunt e_all-mountain emtb wheels phase engage hub microspline freehub 6 pawls 42 tooth ratchet ring

Lacing the aluminum rim to the Phase Engage hub are 32 triple-butted J-bend steel spokes from Pillar (PSR 2018). These have a larger 1.8mm gauge at the central portion. They terminate with conical nipple washers and 16mm brass nipples, said to enhance strength and improve longevity of the wheelset.

hunt e_all-mountain emtb wheels with phase engage hub 8 degree engagement pillar spokes 32h
The Hunt Phase Engage Hub is CNC machined from 7075-T6 alloy, home to Revo dual-sealed bearings. Hubs are 6-bolt only. Credit: James Vincent.

Pricing & Availability

The Hunt E_All-Mountain eBike-specific wheelset retails at £479 // €599 // $649 USD. It will be available to pre-order as of next week. Sizes on offer include 29″, 27.5″ and MX, with Microspline, Shimano HG or SRAM XD freehub bodies to choose from. Each wheelset is shipped with valves, with the rims pre-taped ready for a tubeless set up. And, a few spare spokes are included, too.

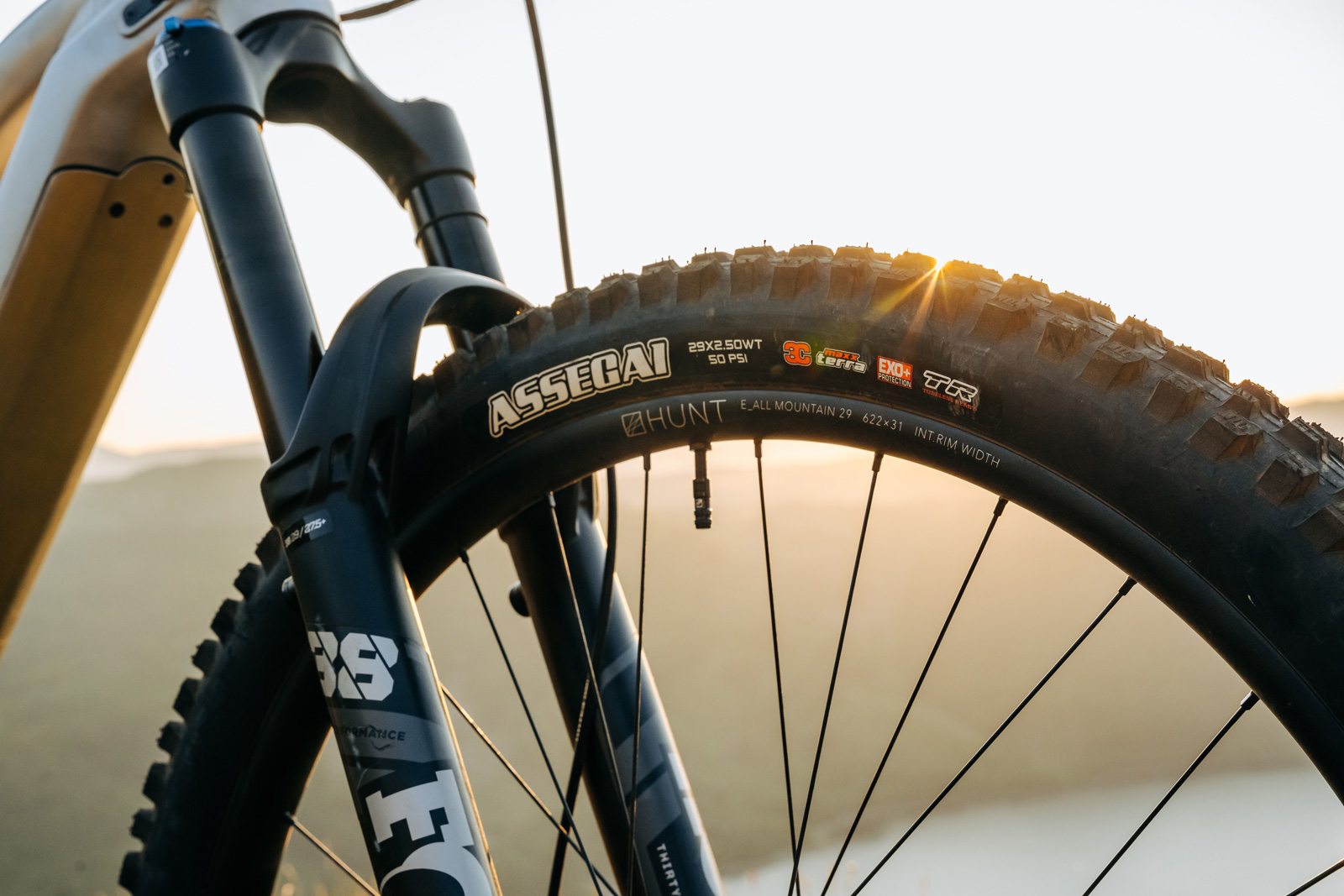

hunt emtb specific wheelset e_all-mountain 31mm alloy rim
Credit: James Vincent

Wheels are sold with a three-year warranty against material or workmanship defects.
